Custom Performance Engineering Billet Motor Mount System

[MSF Editor]

1 - Custom Performance Engineering Billet Motor Mount System

Review Written By Lenny127 | Edited By Haltech

Introduction

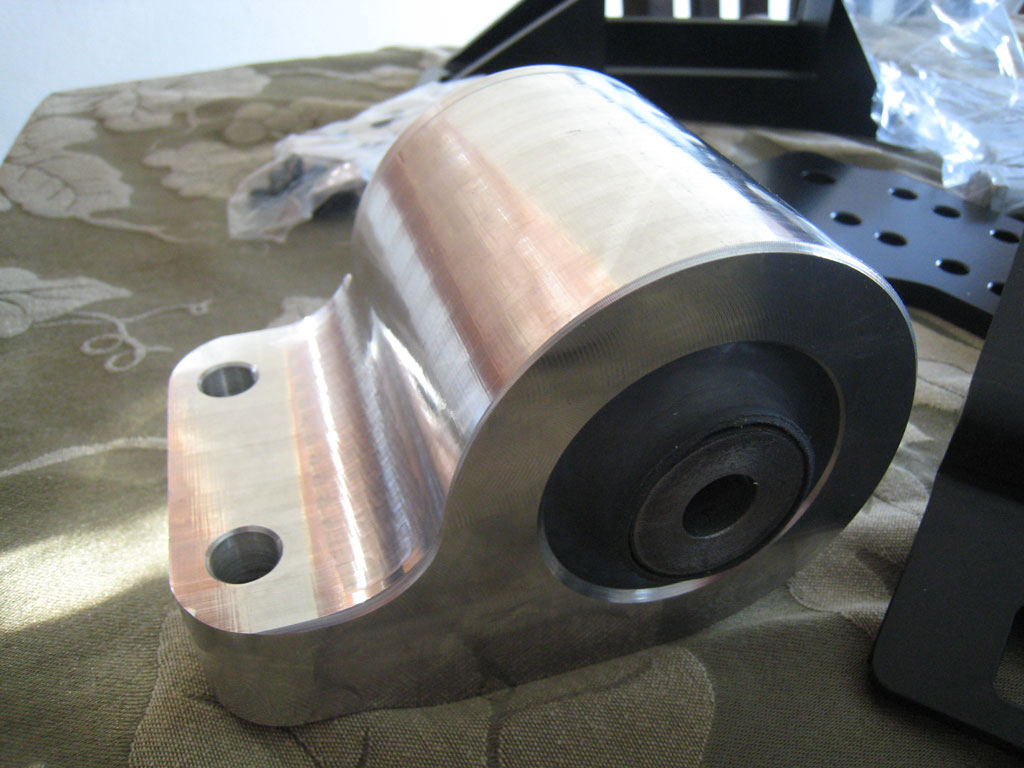

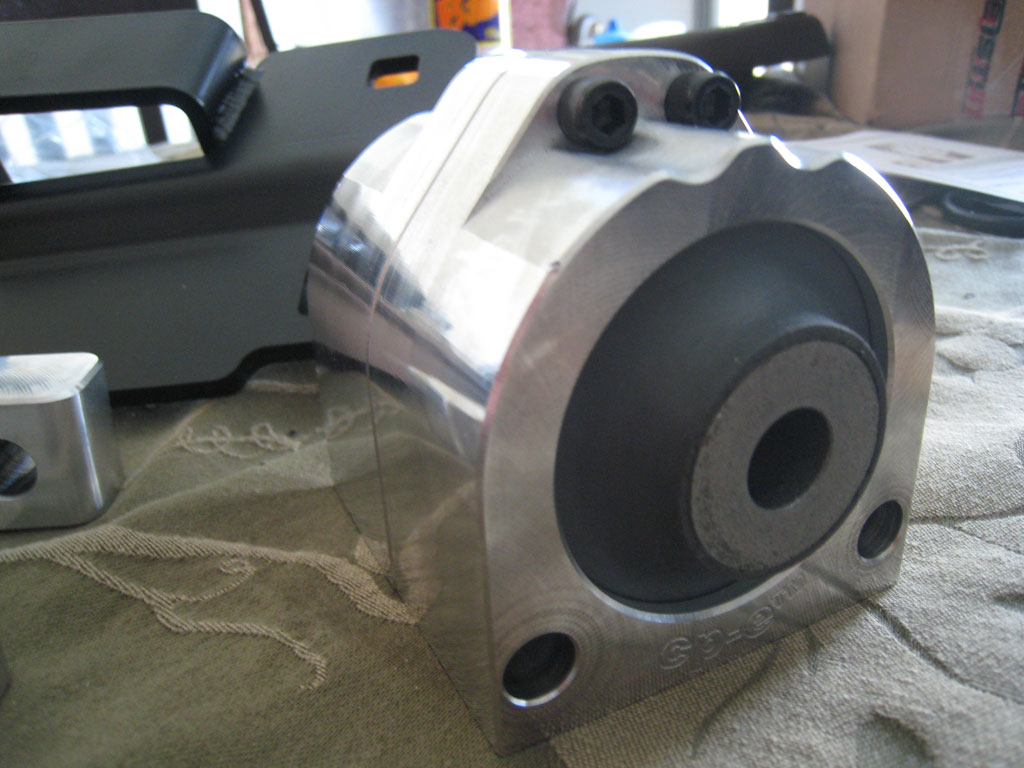

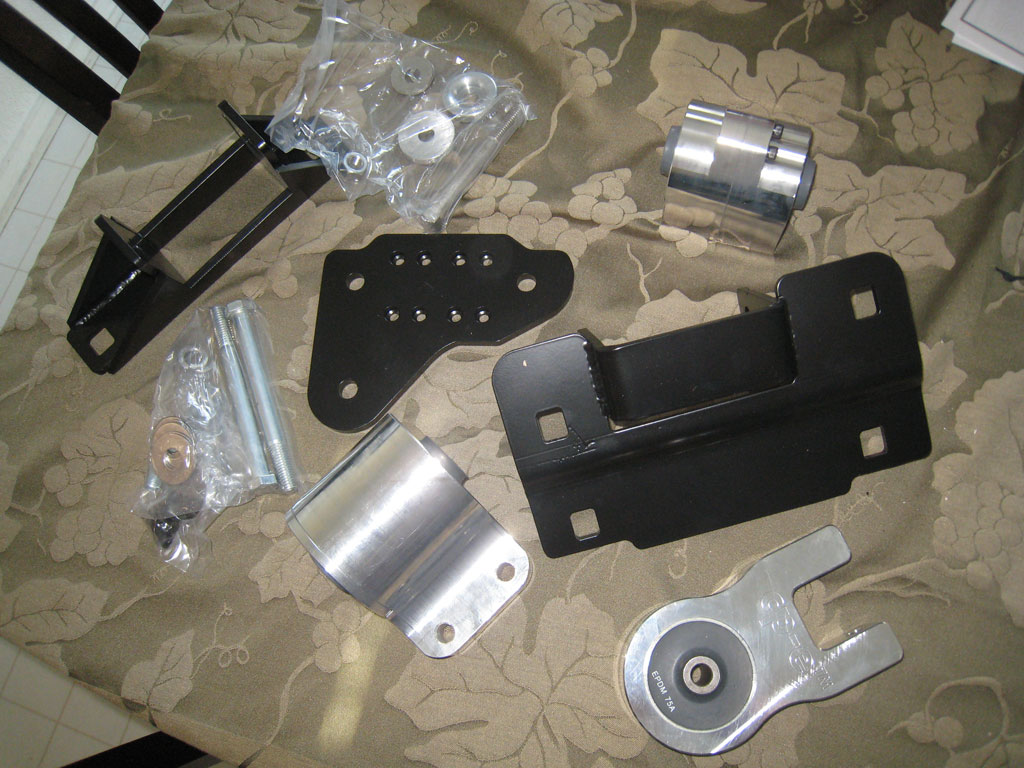

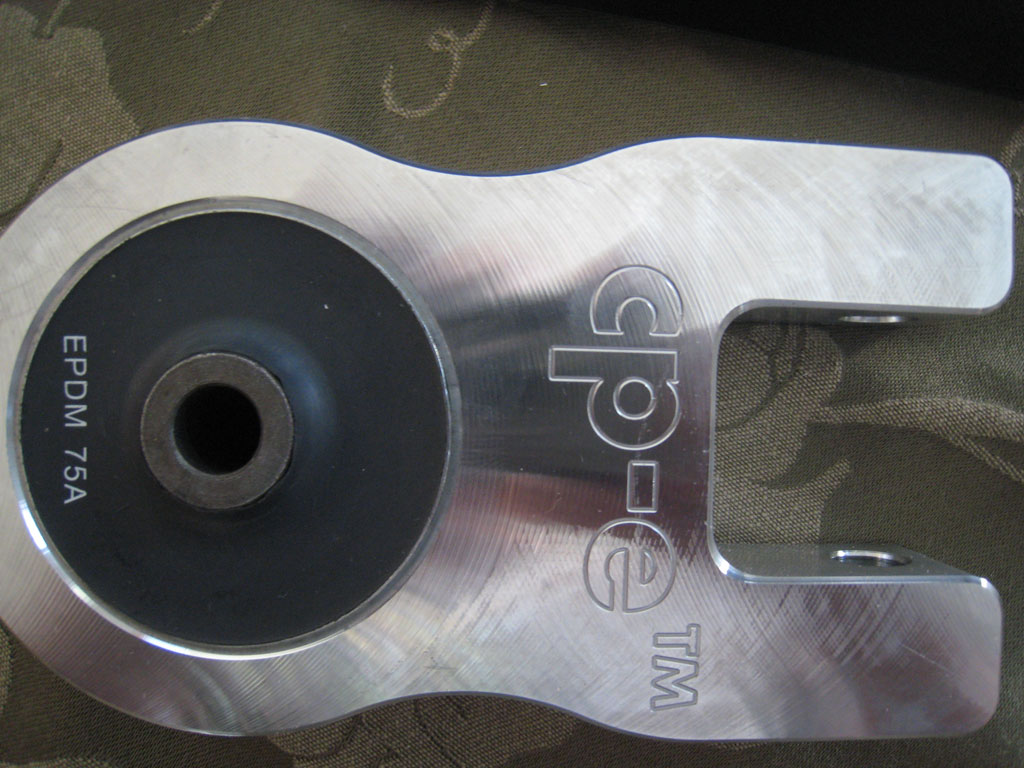

We have finally received the much anticipated set of motor mounts from Cp-e. The set consists of the Rear Motor Mount (that has been out on the market for a while) and the newly released Passenger Side Motor Mount and the Transmission Motor Mount. At first glance it is obvious that some serious time was spent both engineering these pieces and machining them. They come in polished aluminum finish with their corresponding Cp-e logos engraved on them. As a community, we have been waiting for a company to provide us a solid mount solution and CP-e has delivered that to us. I can remember back in late 2007 and early 2008 when we needed a transmission mount solution. We would have to epoxy our torn mounts just to get some durability out of them. Let's not forget how many engines we saw hit the ground while moving due to failed mounts! Well, we no longer have to worry about this problem any longer. Please give a steady look at these pics as proof. Pure billet baby!

Some of the research for these mounts comes after 8 months of testing in the Grand Am series mazdaspeed3s. These motor mounts cater to both the mild street car enthusiast and also to the hardcore racer that isn't as concerned with vibrations. The mounts can be chosen in either 60 or 75 durometer form, and unlike a lot of the other mounts out there Cp-e has chosen to use rubber instead of urethane for their bushings, it's felt that rubber has a better tolerance to engine heat than urethane , therefore increasing the life of the part . They have spared no cost when researching the materials to be used on these mounts, , billet 6061-series aluminum is used for a few reasons, durability, lessening of vibrations and harshness and of course looks. (these pieces look like they belong on a $100,000 car.) Also, on some of the parts that even more strength was necessary , ¼ inch mild steel was used ,laser cut of course for perfect fitment. One of the last differences you will notice with Cp-e motor mounts vs the competition is the size of the bushings used, they feel that rather than concentrating the forces created by the engine load all on the center bushing pin, increasing the material around this pin not only distributes the load more evenly but also absorbs some of those annoying vibrations usually related to performance mounts.

The quality of these mounts speak for themselves as do the materials used, this makes these parts perhaps a bit higher cost than the competition, but when it comes to holding your engine in place and letting the pavement feel every bit of horsepower that you have earned then Cp-e mounts might just be the mounts for you.


Why get the complete set?


Let's face it, if your drive a Mazdaspeed3 and have spent any type of money modifying it's power output then you know that every horsepower you have made hasn't seen the pavement. We cannot kid ourselves into thinking that a FWD/Manual Transmission platform is the easiest power delivery platform out there..hardly the case. At some point we all have to make a choice about how intelligently we are going about putting some of this expensive added power to the ground. From torque steer, excessive tire-spin to the dreaded wheel-hop the Cp-e Motor Mount set addresses all these issues in a very balanced way that doesn't leave the driver thinking he is driving a go-kart from all the vibrations and noises.

---

1 2 3 4 5 6 7 8 9 Next»

[Mchart]

Nice write up.

The CP-E mounts definatly are the highest quality out of any. The new pricing scheme on CP-E products is a bit dubious though. Back when the RMM only cost $130 it was definatly the best buy. The increase to $230 was a no-no, and now they are at $180. $180 still seems a bit high though.

I doubt i'll get the side mounts ever, but that tranny mount in particular looks like a beast.

[rodrigo]

the quality is definitely there, the price ....well, companies like sure and jbr will force cpe s prices to go down ..if they want to be competitive.

because this kit as a whole is what , like 800-900? or how much? and that is a lot of loot

[karl-hungus]

jesus. i paid one third that for all 3 mounts.

[dooderek]

someone edited out my pics, lamee

[ak_spray]

Originally Posted by MSF Editor I would like to see CP-e offer these mounts in a kit with some discounted pricing attached to it!

Yes please. Very good write up. 75 duro it is then.

[wette460]

Yeah, but they are pure sex when you get them on the block. I haz all 3 and forgot what wheel hop even feels like. Hardly any engine movement and with the 60 duro I hardly have any vibes at all.

And with the qualitiy of these mounts, the reliability gives me great piece of mind that whenever I drop my clutch or get off and on the gas really quick that my block isn't going to drop out of my engine bay and onto the ground.

I will gladly pay the extra money for a quality part that I know isn't going to take a giant shit on me. Thanks to CP-E I don't have to worry about any of that. CP-E FTW bitches!!!

[redneckrecon]

i was there for this!

[Speed3eak]

So, just looking at the RMM installation - you sure those washers go there? I only have the metal spacers around the bushing, with the washers on the outer edges of the "forks" of the mount.

I already installed mine with red loctite so I'm not changing it either way, it just seems a little odd that cp-e wouldn't make the spacers large enough to begin with. Then again, they also made that plate on the TMM held on with allen screws, so who knows.

[Speed3eak]

Huh - if a moderator is reviewing this, ignore the last one. The photos on page 2 threw me off. The attached photos (page 3) look exactly like mine. My bad.

[X4 SRT]

I just put these in myself about a week ago. Not all three, but the drivers side and passenger side because one was torn to all hell and the other was starting to crack. First things I wanna say is that the instructions that came with them sucked balls especially the pictures. Second after reading your install and review it has now become apparent why I had such a hard time getting the ground wire on the passenger side mount to line up properly; they drilled the hole on the wrong side of my mount. Idiots. Really? I expect better quality control than that when paying so much for these mounts.

As for performance. Yeah the motor seems much more solid in the engine bay now. However I seem to have more wheel hop than I've ever had before. On the street before these mounts all I would do in first and second gear is spin the tires. Now with these mounts on if i get on it hard in first or second its wheel hop city. The only place I ever had wheel hop before these mounts was at the drag strip. I even went back after a few days and checked all my work to make sure that I didn't miss something or put something in wrong or not torque something down enough. Everything was nice and tidy. Oh well. Hope the mounts get better and wheel hop becomes a non issue like it used to be on my stock mounts.

[Staceye77]

I have all Of these mounts installed as of a week ago. What a Difference!!! I love it! No More wheel hop!! First gear sucks way less!! I get every ounce of power to the wheels. I love the vibes too! Its not overwhelming at all! I think I would have liked a lil more actually. The guys at Cp-e were great for installing them for me too! A major plus! Next is the intake and the bov! Do your mounts! You'll Love it! You get what you pay for, I cant afford a dropped engine!

[heeltoe]

is there a break in time for these mounts? i just installed mine less then a week ago. but when i try to take it to high rpm in 1-2 gear it seems like there is way too much vibration. after a couple of days of driving it seems easier to take it to higher rpm but as far as right now 1-2 gear high rpm just doesn't seem smooth.

[Haltech]

Originally Posted by heeltoe is there a break in time for these mounts? i just installed mine less then a week ago. but when i try to take it to high rpm in 1-2 gear it seems like there is way too much vibration. after a couple of days of driving it seems easier to take it to higher rpm but as far as right now 1-2 gear high rpm just doesn't seem smooth.

1000 miles they should be fully broken in. Make sure yu check the torque on them too

[thatsmrgimp2u]

Just installed my tmm today. Must say torque steer is completely gone now. Not that it was ever a big deal, but I can't say I miss it. Car has much better shifts now, but that may be due to my Stocker taking a shit after I installed the Ingalls stiffy on the opposite side. For the people who have done the bsd and had to go back to the stock passenger mount, I think the stiffy is a great alternative.

Anyway all is good minus one loud clunk while decelerating in 2nd. I'll look into more Sunday and check all my torque specs again.

Great write up.


Sent from my Galaxy Nexus using Tapatalk 2

[heeltoe]

Originally Posted by thatsmrgimp2u Just installed my tmm today. Must say torque steer is completely gone now. Not that it was ever a big deal, but I can't say I miss it. Car has much better shifts now, but that may be due to my Stocker taking a shit after I installed the Ingalls stiffy on the opposite side. For the people who have done the bsd and had to go back to the stock passenger mount, I think the stiffy is a great alternative. Anyway all is good minus one loud clunk while decelerating in 2nd. I'll look into more Sunday and check all my torque specs again. Great write up. Sent from my Galaxy Nexus using Tapatalk 2

how is the cabin noise and the vibration feel with the additional stiffy? i heard from other people its bad.

Originally Posted by Haltech 1000 miles they should be fully broken in. Make sure yu check the torque on them too

after 500 miles it feels a lot better i can now take it to higher rpms and it feels smooth now i feel so connected to the floor.

[thatsmrgimp2u]

It's not too bad. And I've got it set to medium stiffness. This is coming from a guy who thought the stock cat back with res delete was too loud...

Sent from my Galaxy Nexus using Tapatalk 2

[jdspeed3]

I just installed my 60 Duro CP-E RMM. I must say first time driving after installing it you can feel the vibrations but its only in the sub 1500 RPM range. I've had it installed for a couple of days now and the vibrations have let off a bit. The mounts helped with torque steer and launching the car. Overall great product and quality.

[CWP_MS3]

Originally Posted by jdspeed3 I just installed my 60 Duro CP-E RMM. I must say first time driving after installing it you can feel the vibrations but its only in the sub 1500 RPM range. I've had it installed for a couple of days now and the vibrations have let off a bit. The mounts helped with torque steer and launching the car. Overall great product and quality.

Give it a couple weeks and it will die down significantly. It will never be gone 100% but it also isn't a piece of shit like the stock one. So... meh.

[heeltoe]

[QUOTE=jdspeed3;1917905]I just installed my 60 Duro CP-E RMM. I must say first time driving after installing it you can feel the vibrations but its only in the sub 1500 RPM range. I've had it installed for a couple of days now and the vibrations have let off a bit. The mounts helped with torque steer and launching the car. Overall great product and quality.[/QUOTE

wait till you take it to higher rpm feels like a motorcycle kinda of.
